Granular Activated Carbon: The Ultimate Guide (Commercial Buyer’s Edition)

---

What Is Granular Activated Carbon?

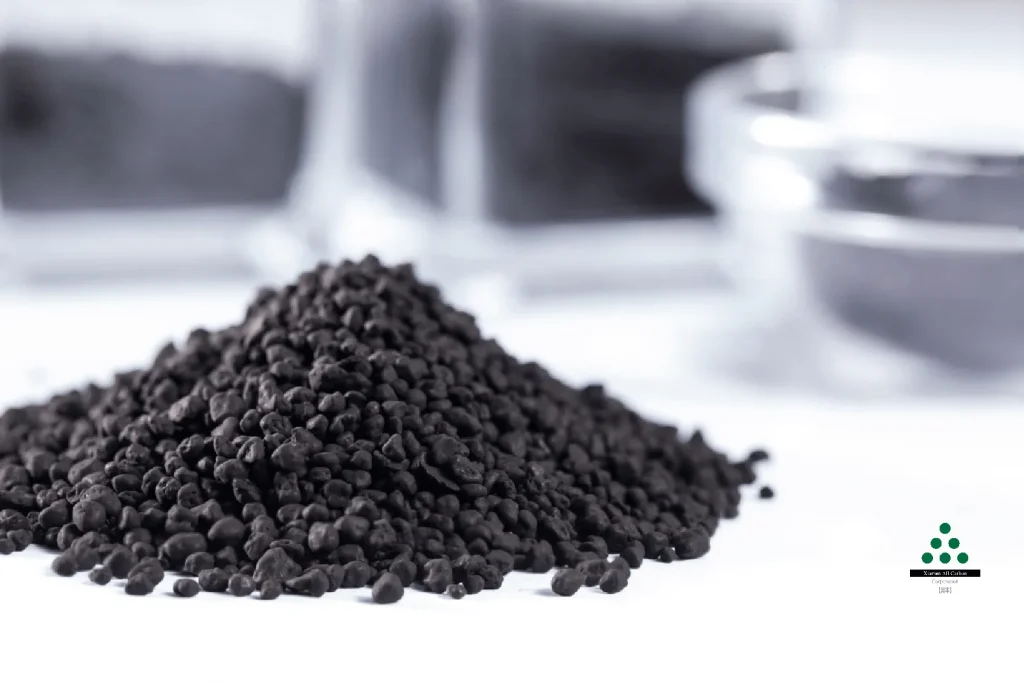

Granular activated carbon (GAC) is a porous adsorbent material with particle sizes typically ranging from 0.2mm to 5mm. Unlike powdered activated carbon (PAC), GAC’s larger granules enable:

• Lower pressure drop in fixed-bed filters
• Higher mechanical strength (attrition resistance >90%)
• Longer service life (6-24 months vs PAC’s 3-6 months)

Industry Fact: The global GAC market will reach $4.3 billion by 2027, driven by water treatment and air purification demands (Grand View Research, 2023).

---

How Granular Activated Carbon Works

GAC removes contaminants through two mechanisms:

Physical Adsorption

• Microporous structure (pores <2nm) traps small molecules via van der Waals forces
• High surface area (500-1,500 m²/g) maximizes contaminant capture

Chemical Reactions (for impregnated GAC)

Impregnant	Target Pollutants	Application
KOH	H₂S, SO₂ (acid gases)	Biogas purification
KI	Mercury vapor	Flue gas treatment
AgNO₃	Bacteria/VOCs	Drinking water filters

---

Granular Activated Carbon vs Other Forms

Parameter	GAC	PAC	Extruded Carbon
Particle Size	0.2-5mm	<0.18mm	3-10mm cylinders
Pressure Drop	Low	High	Very Low
Regeneration	Steam/thermal	Disposable	Thermal only
Best For	Flow-through systems	Emergency treatment	High-flow gases

---

Top 5 Industrial Applications of Granular Activated Carbon

Water Treatment

• Removes chlorine (99.9%), PFAS (85-95%), and pesticides
• Case Study: A California municipality achieved EPA compliance using coal-based GAC (USGS Report)

Air & Gas Purification

• Captures VOCs (e.g., benzene, acetone) in industrial exhaust
• Critical for landfill gas (LFG) upgrading (H₂S <1ppm)

Food & Beverage Processing

• Decolorizes sugar syrups and vegetable oils
• FDA-compliant grades available (21 CFR §173.345)

Gold Mining (CIP Process)

• Adsorbs gold-cyanide complexes with 95% recovery rate
• Preferred mesh size: 4×6 or 6×12

Chemical Manufacturing

• Purifies organic intermediates (e.g., phenol, acetic acid)

---

How to Choose Granular Activated Carbon?

By Raw Material

Type	Advantages	Ideal Use
Coconut Shell	High microporosity (IOD 1,000+)	Drinking water, gold recovery
Bamboo-Based	Cost-effective, high hardness	Wastewater, flue gas
Wood-Based	Balanced meso/micro pores	Food decolorization

By Critical Parameters

• Iodine Number: >900 mg/g (for small molecules)
• CTC Adsorption: >60% (indicates pore volume)
• Mesh Size: 8×30 for gases, 12×40 for liquids
• Ash Content: <5% (avoid metal contamination)

By Certification Needs

• NSF/ANSI 61: Potable water
• EU REACH: Chemical safety
• MIL-DTL-32101: Military air filters

---

Installation & Maintenance Guide

System Design

• Empty Bed Contact Time (EBCT): 5-10 mins for water, 0.5-2s for air
• Bed Depth: Minimum 0.6m to prevent channeling

Regeneration Methods

Method	Efficiency	Cost/Ton
Steam (120°C)	60-70%	low
Thermal (600°C)	80-90%	high
Chemical Wash	50%	medium

---

Future Trends in Granular Activated Carbon

1. Smart Carbon Sensors
   • RFID-tagged GAC monitors saturation in real-time (Pilot by Cabot Corp)
2. Biodegradable Binders
   • Eco-friendly alternatives to coal tar (e.g., lignin-based)
3. Nano-Coated GAC
   • TiO₂ coating enables photocatalytic degradation of VOCs

---

Where to Buy Reliable Granular Activated Carbon?

Evaluate suppliers by:

• BET surface area test reports
• Custom sizing availability
• On-site technical support
